Available various options Complete range of microsprinklers and micro-jets

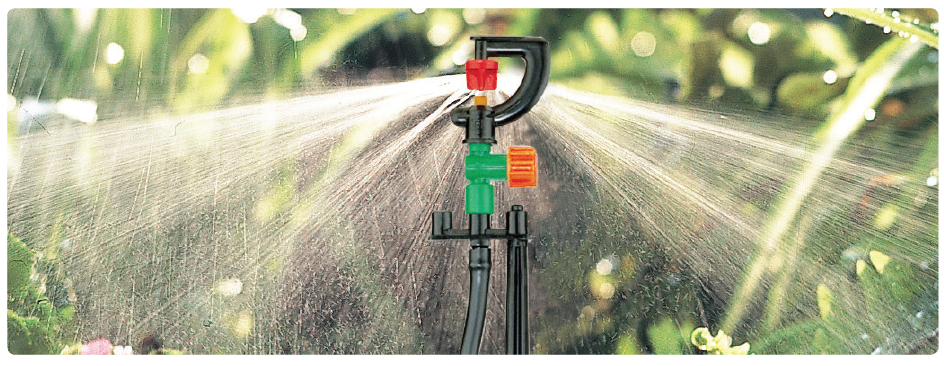

Unique Spinner Design Specially designed spinning for uniform water distribution

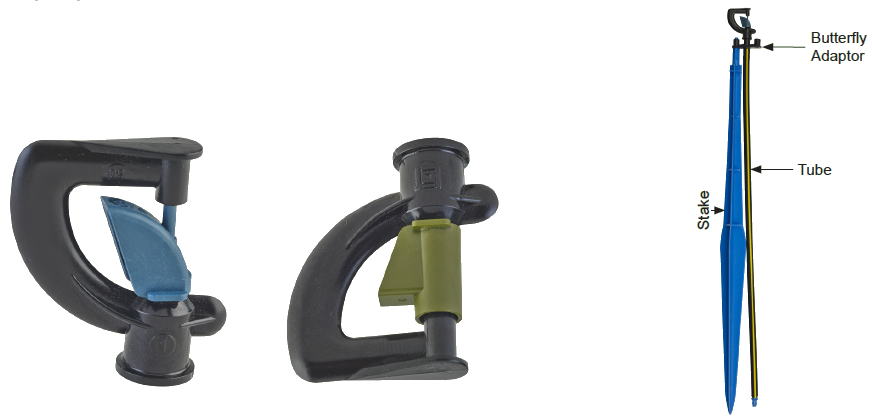

Detachable nozzle and spinner. Offers ease in maintenance and inspection
Specially designed side Ribs Single side smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet
Optional Antimist Optional anti-mist device for higher distribution uniformity
Tapered Inlet Connection For easy connectivity with assembly, 1/8" Push fit tapered inlet connection is available.
Flow Rates: 25 to 397 lph
Inlet Connection: Push-Fit taperd connection
Recommended Spacing´s: 0.5 m to 5 m
Recommended Pressure: 1.5 kg/cm² to 3.5 kg/cm² (21.33 to 42.66 psi)
Easy to install with different mounting options. For details please refer to “Polyfittings & Accessories” section.
Minimum filtration requirement - 130 micron for Purple & Brown nozzle - 200 micron for other nozzle
Applications
Suitable for soils where adequate wetting is difficult to achieve and where water is available only for short periods
Unlimited combinations flow rates & wetting patterns for:
- Irrigation in orchards, vegetables and gardens
- Irrigation in greenhouses and shade houses
- Cooling of poultry and livestock
